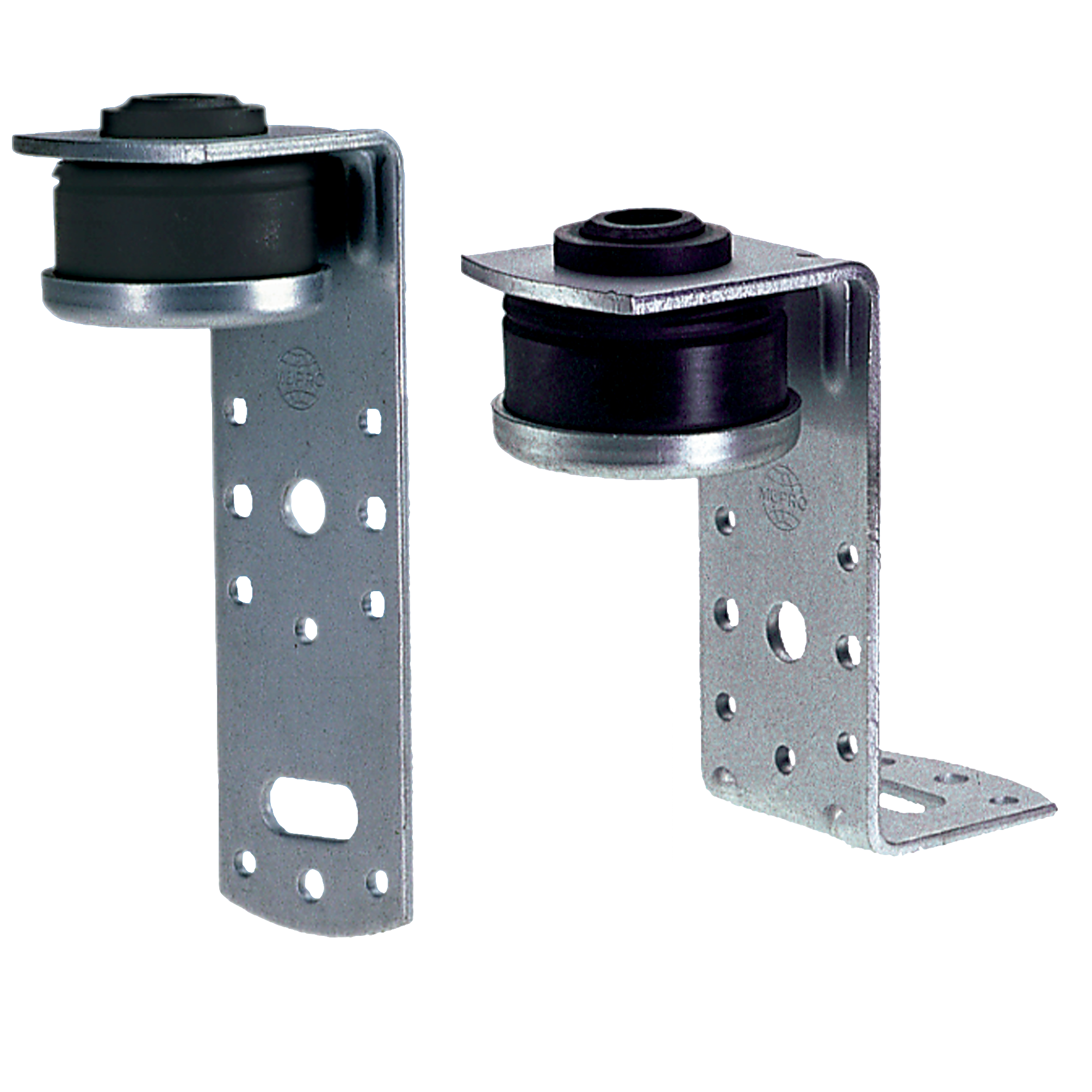

Duct fixing angles

with insulator, galvanised

Display variants as list

Design:

Duct fixing angles with insulating part Duct fixing twin-angles with insulating part Rubber washer

Type:

12 x 24 x 4 mm Type I Type II Type III

Field of application

Advantages

Incorporated highly-elastic vibration-isolating element
Excellent alignment and height adjustment via the threaded rods
Design as angle and twin-angle
Various attachment options to air duct with rivets, self-drilling screws or bolts up to M8 in the oblong hole
Direct attachment to air duct possible
Average vibration reduction of 17 dB(A)

Product number	Design	Type	Action
116579	Duct fixing angles with insulating part	Type I	Pieces
116635	Duct fixing angles with insulating part	Type II	Pieces
172084	Duct fixing angles with insulating part	Type III	Pieces
116543	Duct fixing twin-angles with insulating part	Type I	Pieces
116546	Duct fixing twin-angles with insulating part	Type II	Pieces
113092	Rubber washer	12 x 24 x 4 mm	Pieces
