MÜPRO-PHONEX® Anchors

Display variants as list

Type:

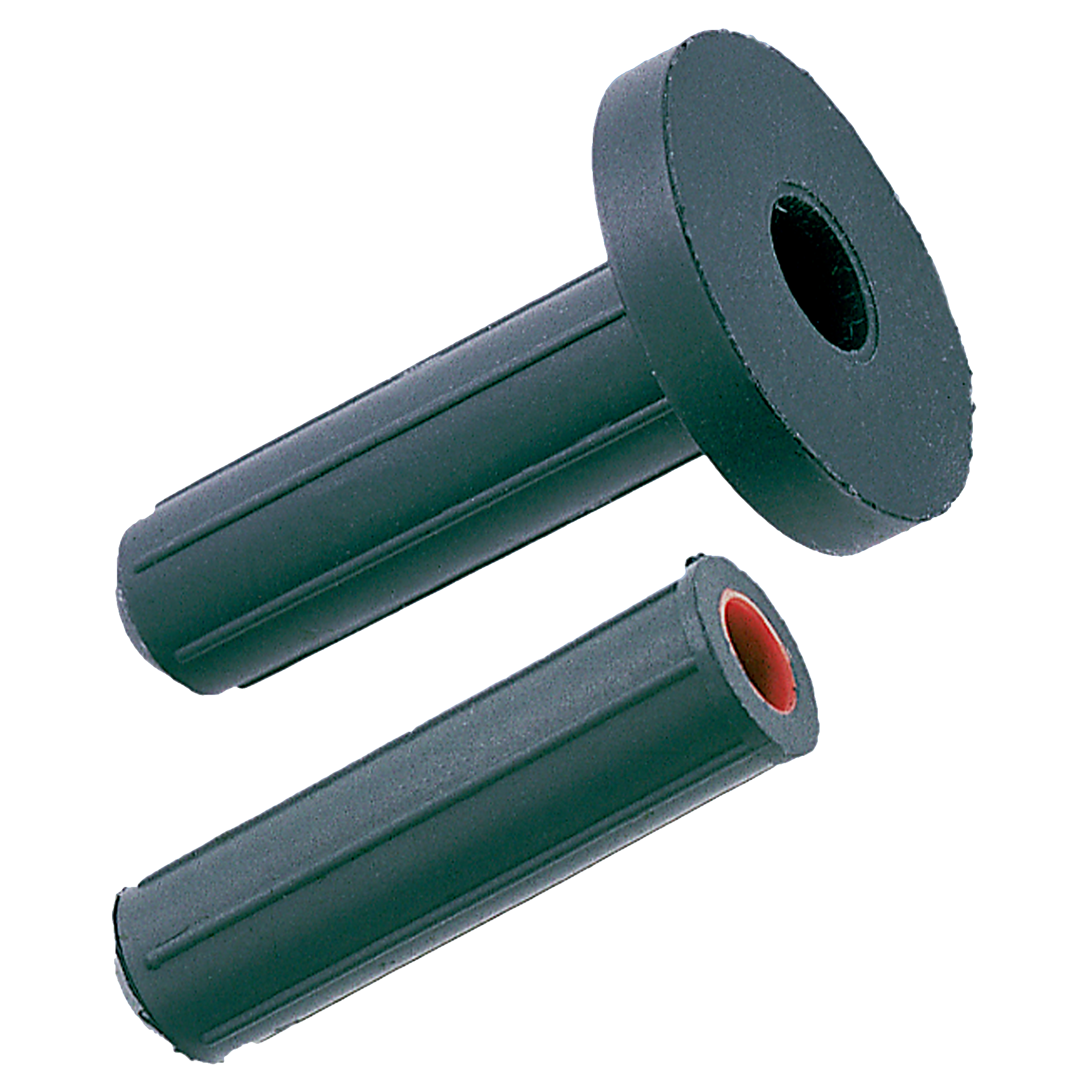

Anchor with collar Anchor without collar

Drilling diameter D:

10 mm 12 mm 14 mm 16 mm 18 mm

Field of application

Suitable for structure-borne noise decoupling anchorages in concrete, natural stone, solid brick, lime sand brick, ventilated brick, wood

Advantages

Structure-borne noise isolation already integrated into the anchor
No additional construction space required for vibration control elements
Sound level reduction by up to 16 dB(A)
Suitable for all types of wood screws, e.g. bolt screws and shoulder screws
The version with vibration collar prevents structure-borne noise transmission even on wallmounted objects
Excellent screw guidance, no breaking out at the side
Suitable for wall-mounted heaters
Available with collar and without collar

Field of application:: Concrete non-cracked | Concrete cracked | Solid brick | Perforated brick | Lime sand brick | Natural stone, hard
Product type:: Synthetics plugs
Vibration control tested:: Yes

MÜPRO-PHONEX® Anchors

Product number	Type	Drilling diameter D	Action
120239	Anchor with collar	10 mm	Pieces
120243	Anchor with collar	12 mm	Pieces
120247	Anchor with collar	14 mm	Pieces
120251	Anchor with collar	16 mm	Pieces
120255	Anchor with collar	18 mm	Pieces
120259	Anchor without collar	10 mm	Pieces
120263	Anchor without collar	12 mm	Pieces
120268	Anchor without collar	14 mm	Pieces
120272	Anchor without collar	16 mm	Pieces
120276	Anchor without collar	18 mm	Pieces
