Duct clamps 800 mm

Duct clamps

Duct clamp DÄMMGULAST® orange, M8/M10, 800 mm, galvanised

Display variants as list
Reset selection
Art.no.: 143270
Nominal size: 800 mm
Sales unit: 1 Pieces
Weight/item: 1.576 kg
Pieces

Field of application

  • For attachment of spiral-seam pipes

Advantages

  • Manufactured to suit air duct dimensions
  • Practical latchening fastener: simple and secure insertion and fastening of the pipe due to quick fastener for nominal pipe size of up to 450 mm, M8 hexagon screws for pipe sizes from 450 mm and upwards
  • Easy installation due to the wide opening angle of the clamp
  • Added rigidity due to the grooved design of the duct clamp
  • Easy clicking-in of the fastening bolt with the tip of a finger
  • High safety due to the positive-fit edge hook-in opening
  • No inadvertent opening once it has clicked in
  • The easy click-in fastener allows opening and closing of the pipe clamp with only one hand
  • DÄMMGULAST® vibration control lining with green identification stripe: average sound level improvement up to 18 dB(A)
  • Manufactured to suite connecting thread M8/M10
  • This product is awarded with the "Gütezeichen Rohrbefestigung" (quality mark of pipe support) and is submitted to controls according to RAL-GZ 655-B
Basic data text:
Duct clamp DÄMMGULAST® orange, M8/M10, 800 mm, galvanised
Product type:
Duct clamps
Vibration control lining:
DÄMMGULAST® orange
Material:
Steel
Surface:
galvanised
Connecting thread:
M8/M10

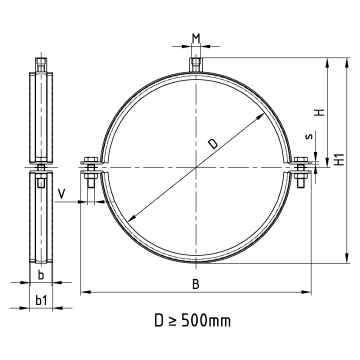

Dimension B:
867 mm
eCl@ss 7.1:
23-14-02-90
Nominal size DN:
800
Locking bolts:
1
eCl@ss 11.1:
23-14-02-90
Vibration control tested:
Yes
RAL:
Yes
Design:
two-piece
Dimension b:
25 mm
Dimension b1:
28 mm
Dimension s:
2.5 mm
Dimension V:
M8
Max. recommended load:
1,200 N
Average vibration reduction:
18 dB(A)
Locking technology:
Quick locking
Customs tariff number:
73269060
