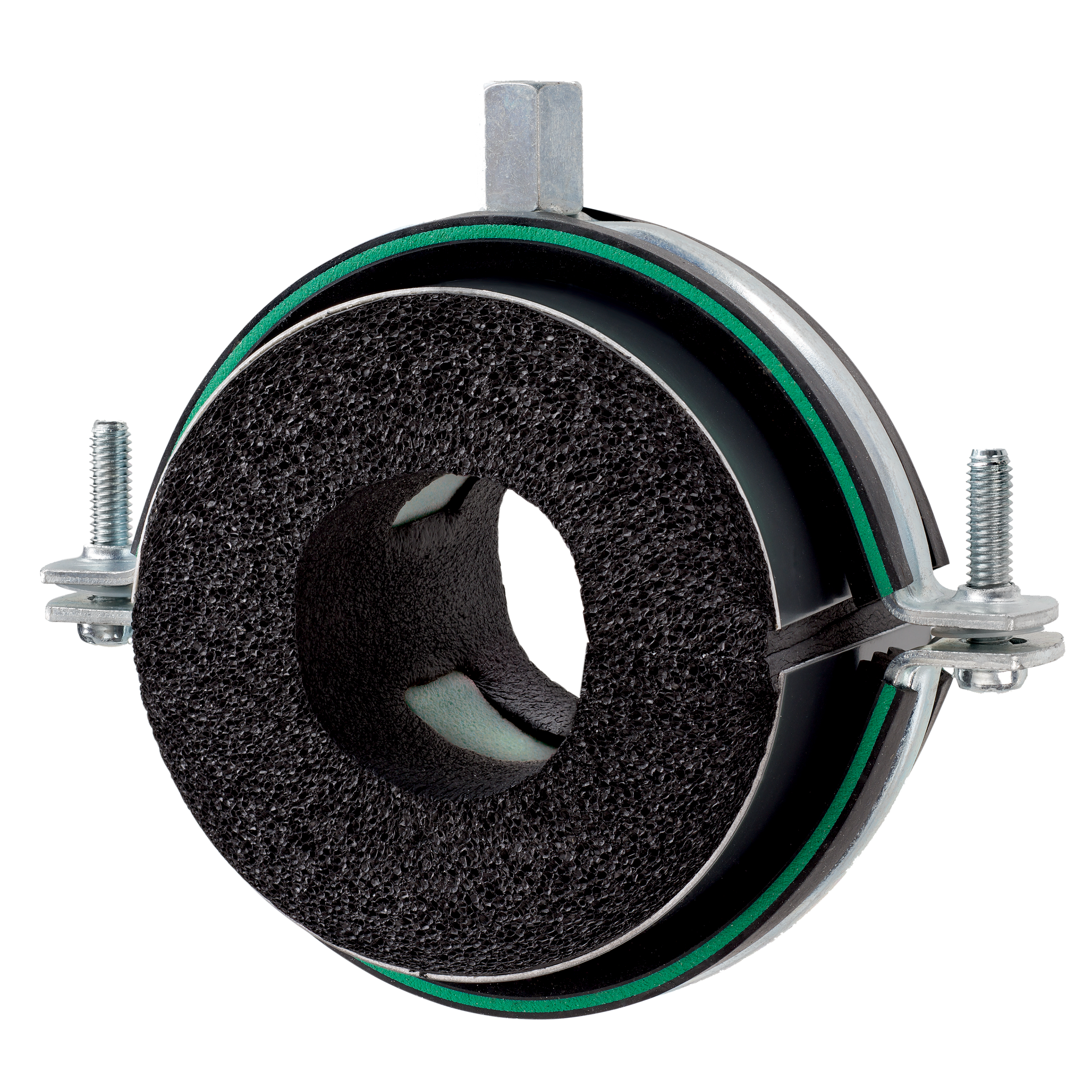

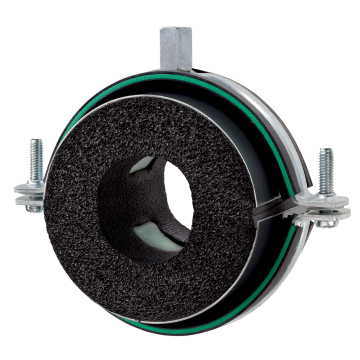

Insulation clamps type H, M, T

two-piece, with single bossed clamps JUNIOR with DÄMMGULAST® green, galvanised

Display variants as list

Type:

Type H - Insulation thickness 9.5 - 16 mm Type M - Insulation thickness 15.5 - 25 mm Type T - Insulation thickness 32 - 45 mm

Vibration control lining:

DÄMMGULAST® green

Clamping range:

10 - 13.5 mm 15 - 18 mm 21.3 - 24 mm 22 - 25 mm 27 - 30 mm 35 - 38 mm 42 - 44.5 mm 48.3 mm 54 - 57 mm 60.3 - 64 mm 70 mm 76.1 - 80 mm 88.9 88.9 mm 101.6 mm 108 mm 114.3 mm 125 125 mm 133 mm 139.7 mm

Field of application

Thermal decoupled pipe attachment in the field of refrigeration
Specially suitable for attachments in ventilation, air-conditioning, heating, refrigeration installations as well as for hot and chilled water pipes

Advantages

Rigorous avoidance of temperature bridges in cold pipelines
Highly effective insulation due to support elements made of PET and a synthetic rubber mantle
Insulation thickness matched to the increasing insulation layer thickness of the insulation sleeves
Reliable water vapour diffusion barrier
Easy installation using self-adhesive fasteners in the part-joint
Rubber surfaces on the face sides allow easy bonding with the rubber pipe insulation
Fixed load-distribution sleeves for improved load transfer
Structure-borne noise damping due to DÄMMGULAST® vibration control lining with green identification stripe: Average sound level improvement up to 18.6 dB(A)

Fire classification:: Euroclass E - EN 13501-1 in systems association with AF/Armaflex: B-S3-d0
Design:: 2 PET segment shells and closed-cell elastomeric foam, integral load-distributing sleeves, with two-piece pipe clamp, vibration-damped with DÄMMGULAST® lining
Product type:: Refrigerant pipe clamps
Effective density:: 100 kg/m³
Vibration control lining:: DÄMMGULAST® green
Material:: Polyethylene terephthalate, synthetic rubber
Design:: two-piece
Average vibration reduction:: 18 dB(A)
Temperature range:: -50 °C to +110 °C
Thermal conductivity:: λ = 0.037 W/mK at +40 °C | λ = 0.033 W/mK at 0 °C
Water vapour diffusion resistance:: µ = 10,000

Insulation clamps type H, M, T, two-piece, with single bossed clamps JUNIOR with DÄMMGULAST® green and insulation shells, galvanised

Product number	Type	Vibration control lining	Clamping range	Action
149350	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	10 - 13.5 mm	Pieces
149351	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	15 - 18 mm	Pieces
149352	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	22 - 25 mm	Pieces
149353	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	27 - 30 mm	Pieces
149354	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	35 - 38 mm	Pieces
149355	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	42 - 44.5 mm	Pieces
149356	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	48.3 mm	Pieces
149357	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	54 - 57 mm	Pieces
149358	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	60.3 - 64 mm	Pieces
149359	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	70 mm	Pieces
149360	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	76.1 - 80 mm	Pieces
149361	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	88.9 mm	Pieces
149362	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	108 mm	Pieces
149363	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	114.3 mm	Pieces
150261	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	101.6 mm	Pieces
149364	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	125 mm	Pieces
149365	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	133 mm	Pieces
149366	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® green	139.7 mm	Pieces
149368	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	10 - 13.5 mm	Pieces
149369	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	15 - 18 mm	Pieces
149370	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	22 - 25 mm	Pieces
149371	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	27 - 30 mm	Pieces
149372	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	35 - 38 mm	Pieces
149373	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	42 - 44.5 mm	Pieces
149374	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	48.3 mm	Pieces
149375	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	54 - 57 mm	Pieces
149376	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	60.3 - 64 mm	Pieces
149377	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	70 mm	Pieces
149378	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	76.1 - 80 mm	Pieces
149379	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	88.9	Pieces
149380	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	101.6 mm	Pieces
149381	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	108 mm	Pieces
149382	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	114.3 mm	Pieces
151163	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® green	125	Pieces
149390	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® green	15 - 18 mm	Pieces
149391	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® green	21.3 - 24 mm	Pieces
149392	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® green	27 - 30 mm	Pieces
149393	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® green	35 - 38 mm	Pieces
149394	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® green	42 - 44.5 mm	Pieces
149395	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® green	48.3 mm	Pieces
149396	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® green	54 - 57 mm	Pieces
149397	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® green	60.3 - 64 mm	Pieces
149398	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® green	70 mm	Pieces
149399	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® green	76.1 - 80 mm	Pieces
149400	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® green	88.9 mm	Pieces
