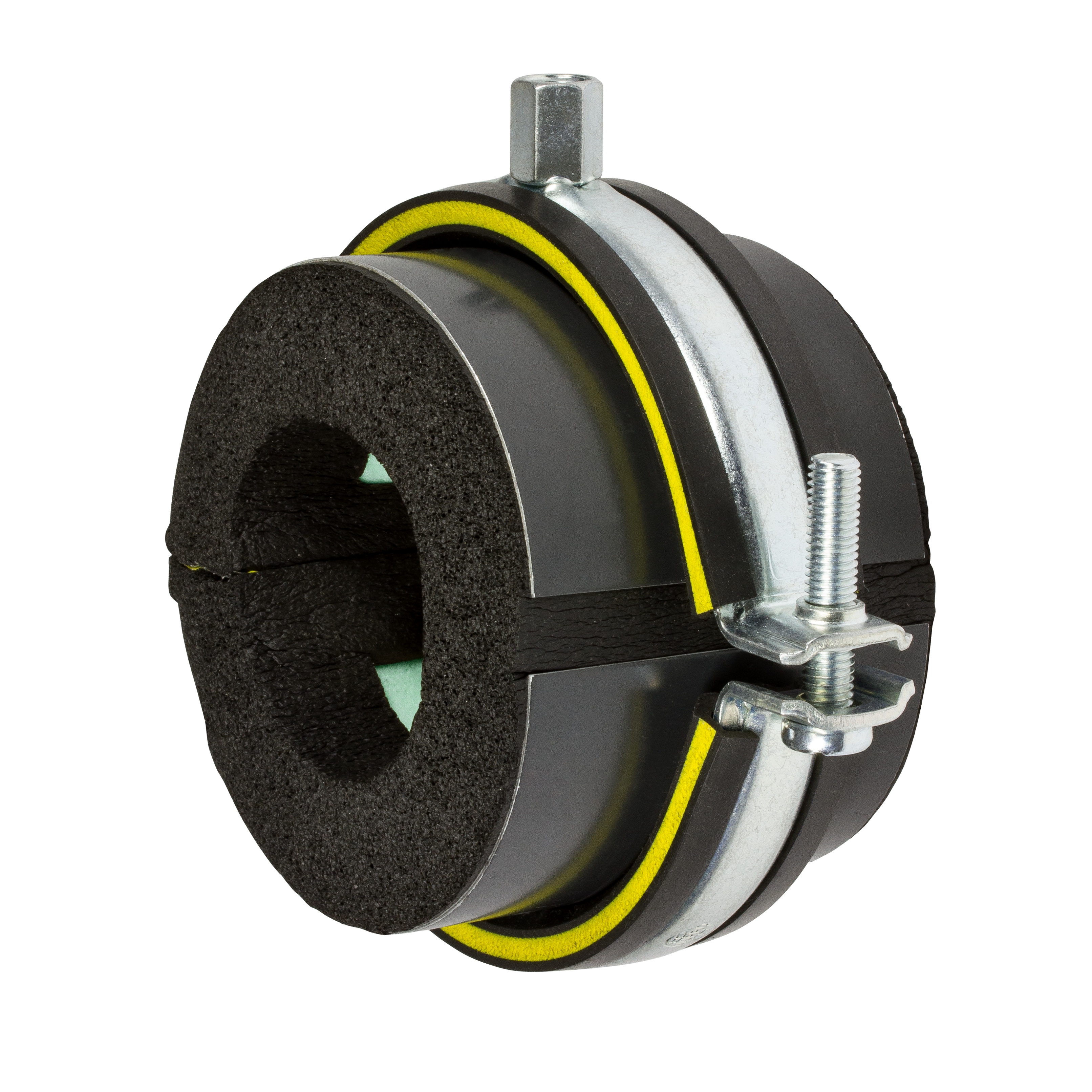

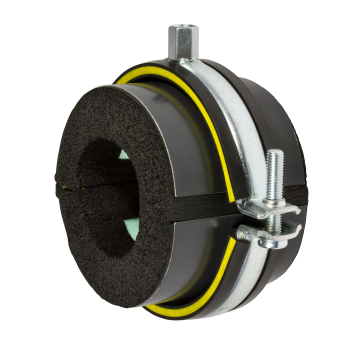

Insulation clamps type H, M, T

two-piece, with single bossed clamps with DÄMMGULAST® yellow, galvanised

Display variants as list

Type:

Type H - Insulation thickness 9.5 - 16 mm Type M - Insulation thickness 15.5 - 25 mm Type T - Insulation thickness 32 - 45 mm

Vibration control lining:

DÄMMGULAST® yellow

Clamping range:

10 - 13.5 mm 15 - 18 mm 21.3 - 25 mm 26.9 - 28 mm 26.9 - 30 mm 30 mm 33.7 - 38 mm 42 - 44.5 mm 48.3 mm 54 - 57 mm 60.3 - 64 mm 70 mm 76.1 - 80 mm 88.9 mm 101.6 - 108 mm 102 - 108 mm 114.3 mm 125 mm 133 mm 139.7 mm 160 mm 165 - 168 mm 165.1 mm 168.3 mm 200 mm 216 - 219 mm 267 mm 273 mm

Field of application

Thermal decoupled pipe attachment in the field of refrigeration
Specially suitable for attachments in ventilation, air-conditioning, heating, refrigeration installations as well as for hot and chilled water pipes

Advantages

Rigorous avoidance of temperature bridges in cold pipelines
Highly effective insulation due to support elements made of PET and a synthetic rubber mantle
Insulation thickness matched to the increasing insulation layer thickness of the insulation sleeves
Reliable water vapour diffusion barrier
Easy installation using self-adhesive fasteners in the part-joint
Rubber surfaces on the face sides allow easy bonding with the rubber pipe insulation
Fixed load-distribution sleeves for improved load transfer
Structure-borne noise damping due to DÄMMGULAST® vibration control lining with yellow identification stripe: Average sound level improvement up to 22 dB(A)

Product type:: Refrigerant pipe clamps
Vibration control lining:: DÄMMGULAST® yellow
Average vibration reduction:: 22 dB(A)

Insulation clamps type H, M, T, two-piece, with single bossed clamps with DÄMMGULAST® yellow and insulation shells, galvanised

Product number	Type	Vibration control lining	Clamping range	Action
111364	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	10 - 13.5 mm	Pieces
111404	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	10 - 13.5 mm	Pieces
111374	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	15 - 18 mm	Pieces
111414	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	15 - 18 mm	Pieces
111527	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	15 - 18 mm	Pieces
111380	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	21.3 - 25 mm	Pieces
111426	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	21.3 - 25 mm	Pieces
111537	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	21.3 - 25 mm	Pieces
111382	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	26.9 - 28 mm	Pieces
111430	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	26.9 - 30 mm	Pieces
111541	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	26.9 - 30 mm	Pieces
111384	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	30 mm	Pieces
111432	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	33.7 - 38 mm	Pieces
111386	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	33.7 - 38 mm	Pieces
111547	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	33.7 - 38 mm	Pieces
111388	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	42 - 44.5 mm	Pieces
111434	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	42 - 44.5 mm	Pieces
111549	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	42 - 44.5 mm	Pieces
111390	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	48.3 mm	Pieces
111436	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	48.3 mm	Pieces
111551	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	48.3 mm	Pieces
111392	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	54 - 57 mm	Pieces
111438	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	54 - 57 mm	Pieces
111553	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	54 - 57 mm	Pieces
111440	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	60.3 - 64 mm	Pieces
111394	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	60.3 - 64 mm	Pieces
111555	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	60.3 - 64 mm	Pieces
111396	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	70 mm	Pieces
111442	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	70 mm	Pieces
111557	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	70 mm	Pieces
111398	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	76.1 - 80 mm	Pieces
111444	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	76.1 - 80 mm	Pieces
111559	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	76.1 - 80 mm	Pieces
111400	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	88.9 mm	Pieces
111446	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	88.9 mm	Pieces
111560	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	88.9 mm	Pieces
111402	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	101.6 - 108 mm	Pieces
111362	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	102 - 108 mm	Pieces
111515	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	102 - 108 mm	Pieces
111366	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	114.3 mm	Pieces
111406	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	114.3 mm	Pieces
111519	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	114.3 mm	Pieces
111368	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	125 mm	Pieces
111408	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	125 mm	Pieces
111521	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	125 mm	Pieces
111370	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	133 mm	Pieces
111410	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	133 mm	Pieces
111523	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	133 mm	Pieces
111372	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	139.7 mm	Pieces
111412	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	139.7 mm	Pieces
111525	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	139.7 mm	Pieces
111376	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	160 mm	Pieces
111416	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	160 mm	Pieces
111529	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	160 mm	Pieces
111418	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	165.1 mm	Pieces
111531	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	165.1 mm	Pieces
111378	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	165 - 168 mm	Pieces
111420	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	168.3 mm	Pieces
111533	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	168.3 mm	Pieces
111535	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	200 mm	Pieces
111428	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	216 - 219 mm	Pieces
111539	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	216 - 219 mm	Pieces
111543	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	267 mm	Pieces
111545	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	273 mm	Pieces
