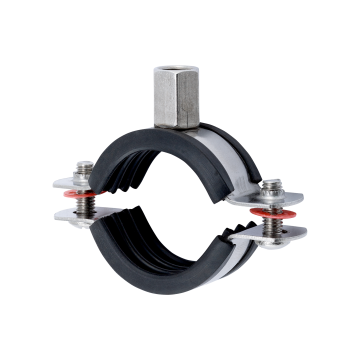

Single bossed clamps

Single bossed clamps

with DÄMMGULAST® black, stainless steel

Display variants as list

Clamping range:

12 - 14 mm 15 - 19 mm 20 - 23 mm 25 - 28 mm 32 - 35 mm 40 - 43 mm 44 - 49 mm 50 - 56 mm 57 - 61 mm 63 - 67 mm 70 - 73 mm 74 - 80 mm 83 - 91 mm 101 - 106 mm 108 - 114 mm 123 - 127 mm 131 - 135 mm 136 - 139 mm 140 - 144 mm 159 - 163 mm 165 - 169 mm

Field of application

Suitable for attachments in industrial areas as well as in air-conditioning, ventilation and sanitary areas
For indoor and outdoor use

Advantages

The 2 locking screws allow adjustment to accommodate a greater variation in pipe diameter
Tightening bolts with combination cross-head convenient for power driver
Tightening bolts secured with captive washers
Vibration control lining DÄMMGULAST® black: average vibration improvement of up to 18 dB(A)

Product type:: Pipe clamps medium load range
Vibration control lining:: DÄMMGULAST® black
Material:: stainless steel
Surface:: V2A
Vibration control tested:: Yes
Stainless:: Yes

Single bossed clamps, with DÄMMGULAST® black, stainless steel

	Product number	Clamping range	Action
	175981	12 - 14 mm	Pieces
	175982	15 - 19 mm	Pieces
	175983	20 - 23 mm	Pieces
	175984	25 - 28 mm	Pieces
	175985	32 - 35 mm	Pieces
	175986	40 - 43 mm	Pieces
	175987	44 - 49 mm	Pieces
	175988	50 - 56 mm	Pieces
	175989	57 - 61 mm	Pieces
	175990	63 - 67 mm	Pieces
	175991	70 - 73 mm	Pieces
	175992	74 - 80 mm	Pieces
	175993	83 - 91 mm	Pieces
	175994	101 - 106 mm	Pieces
	175995	108 - 114 mm	Pieces
	175996	123 - 127 mm	Pieces
	175997	131 - 135 mm	Pieces
	175998	136 - 139 mm	Pieces
	175999	140 - 144 mm	Pieces
	176000	159 - 163 mm	Pieces
	176001	165 - 169 mm	Pieces
