DÄMMGULAST® Washers

DÄMMGULAST® Washers

Display variants as list

Type:

DÄMMGULAST® Washers Washers

For thread:

M8 M10

Dimension D:

24 mm 28 mm 34 mm

Select a variant for further information, images and documents.

Field of application

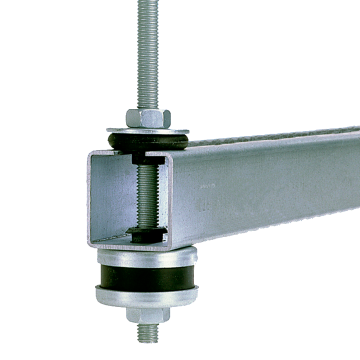

Vibration control of traverses and pipe bridges made of MPC-Support channels
Can be fitted using screws, threaded pins and rods up to M10
Ideal supplement to DÄMMGULAST® Resilient pad in channel installation

Advantages

Highly elastic vibration decoupler for light compressive loadings
Protective bushing against metal contact
Very simple installation without additional work
Noise reduction of up to 18 dB(A)

Surface: galvanised
eCl@ss 7.1: 25-02-04-12
Average vibration reduction: 18 dB(A)

Further technical details can be found in the data sheet.

DÄMMGULAST® Washers

	Product number	Type	For thread	Dimension D	Action
	107087	DÄMMGULAST® Washers	M8	24 mm	Pieces
	107089	DÄMMGULAST® Washers	M8	28 mm	Pieces
	107086	DÄMMGULAST® Washers	M10	34 mm	Pieces
	127229	Washers	M8	28 mm	Pieces
