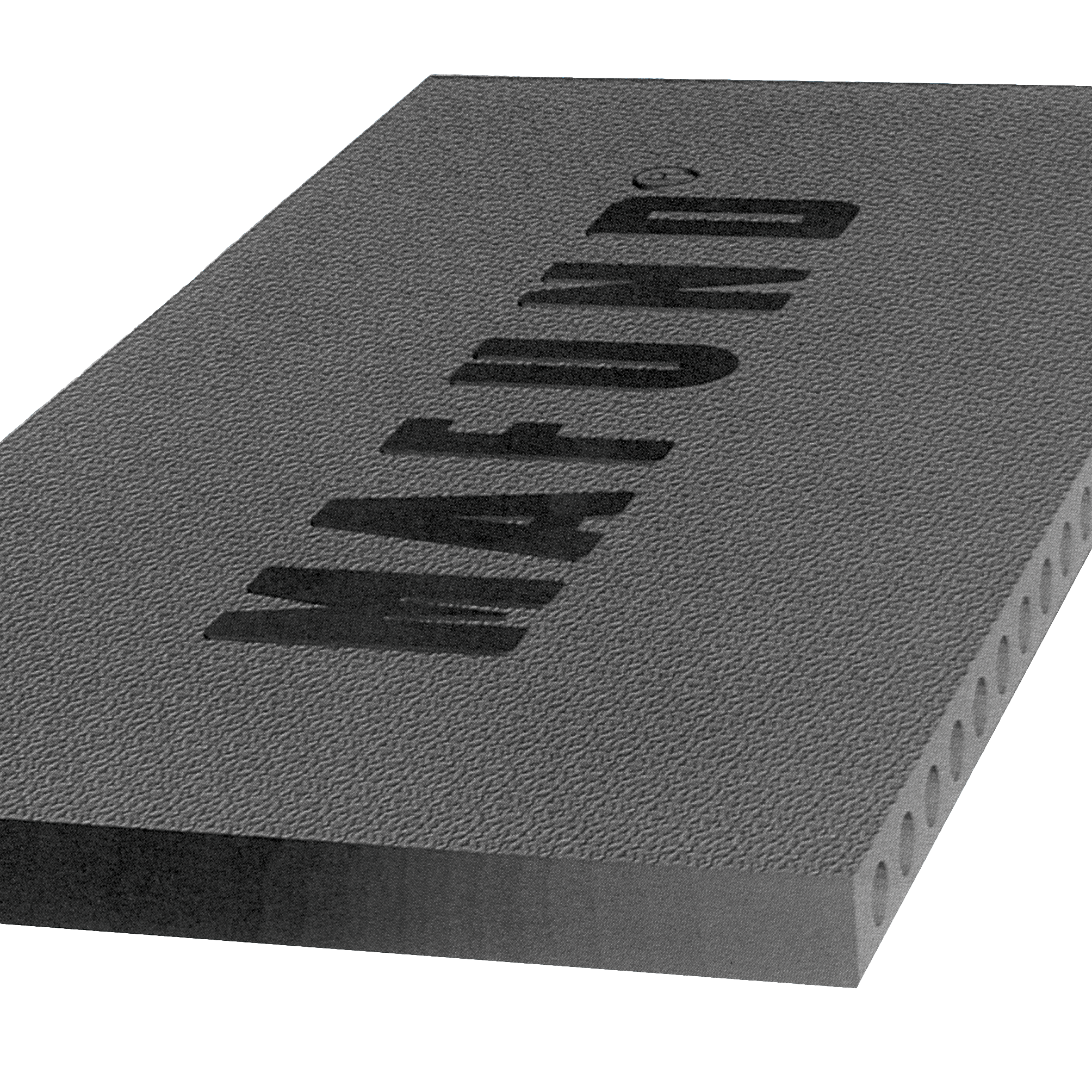

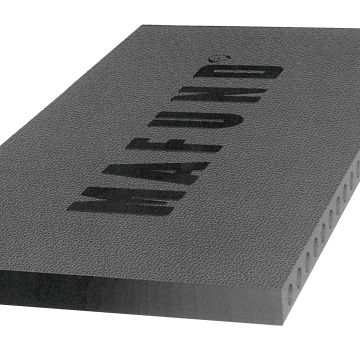

MAFUND® plate

MAFUND® plate

MAFUND® Plate standard, 500 x 250 x 25 mm

Art.no.: 133990
Sales unit: 1 Pieces
Weight/item: 3.160 kg
Pieces

Field of application

  • For machines, equipment, body soundproofing
  • Effective protection from shock, vibration and structure-borne noise

Advantages

  • High resistance against ageing and chemical influences
  • High stability across a wide temperature range
  • Convenient, secure application through selection of load and number of MAFUND® layers
  • High static friction ensures installation without any further fastening in most cases
  • Exceptional suspension and damping
  • Minimal material usage with high insulation effect
  • More cost-efficient than complete insulation systems
  • Extended service life of machines, equipment, etc.
  • Lower noise pollution through acoustic decoupling
Basic data text
MAFUND® Plate standard, 500 x 250 x 25 mm
Material
NR/SBR Polymer
Height
25 mm
Length
500 mm
eCl@ss 11.1
23-18-90-90
eCl@ss 7.1
23-18-90-90
Width
250 mm
Loading max.
50 N/cm²
Loading nominal [N/cm²]
2 - 25 N/cm²
Dynamic elasticity module
441 N/cm²
Shore A hardness
45 ± 5
Static elasticity module
324 N/cm²
Temperature range
-20 °C to +80 °C
Customs tariff number
40169997
Weitere technische Details finden Sie im Datenblatt.
