PHONOLYT® Foot

PHONOLYT® Foot

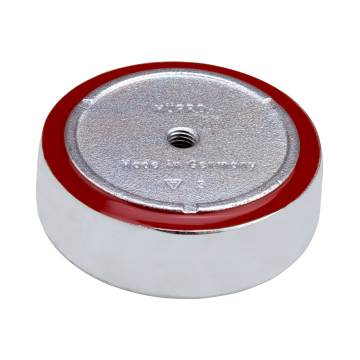

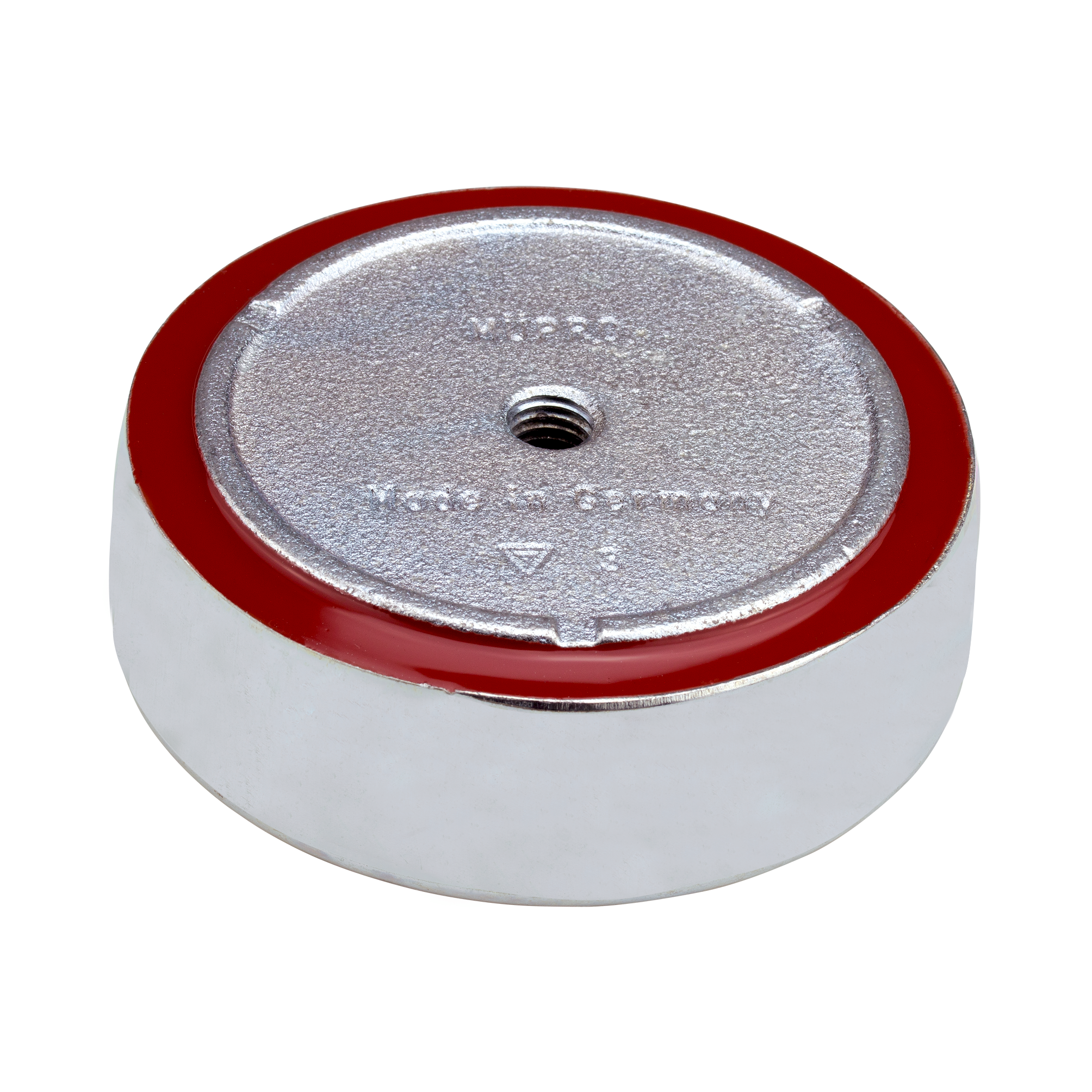

PHONOLYT® Foot, M12, galvanised

Art.no.: 120430
Sales unit: 1 Pieces
Weight/item: 0.959 kg
Pieces

Field of application

  • High-performance vibration-insulating element for floor-mounting

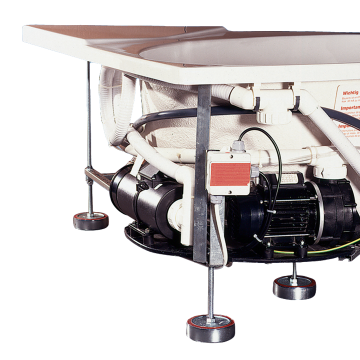

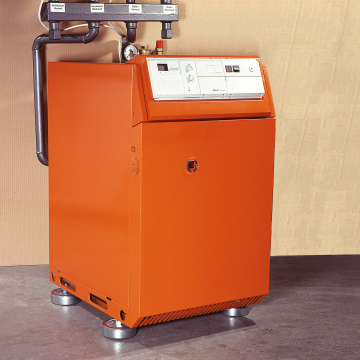

  • For the structure-borne vibration control of heavy equipment such as boilers, whirlpools, motors, pumps, chillers and air compressors

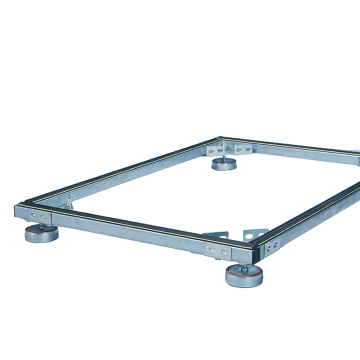

  • Various mounting options when used with cross beams and frames made of MPC-Support channels: stable, versatile  and optionally expandable
  • The ideal component for vibration controlled elevating devices to meet the vibration control requirements of DIN 4109 and VDI 4100

Advantages

  • Heavy duty, compressive load capacity up to 20 kN
  • Rubber sole prevents skidding
  • Easy height adjustment using threaded pin or hexagonal head screw in the M12 connecting thread
  • Effective isolation of vibration coupling using vulcanised-in MÜPROLAN
  • Silicone-free
Basic data text:
PHONOLYT® Foot, M12, galvanised
Material:
Steel
Surface:
galvanised

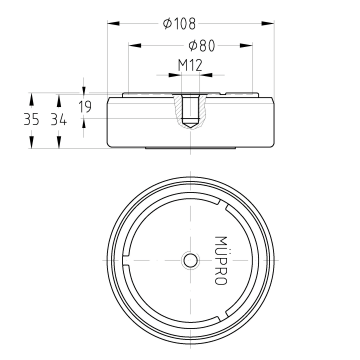

Connecting thread:
M12
eCl@ss 11.1:
23-18-90-90
Screw-in depth emax:
19 mm
eCl@ss 7.1:
25-02-04-12
Vibration control tested:
Yes
Max. recommended compression load:
20,000 N
Average vibration reduction:
30 dB(A)
Customs tariff number:
73269060
