Vibration control element

Vibration control element

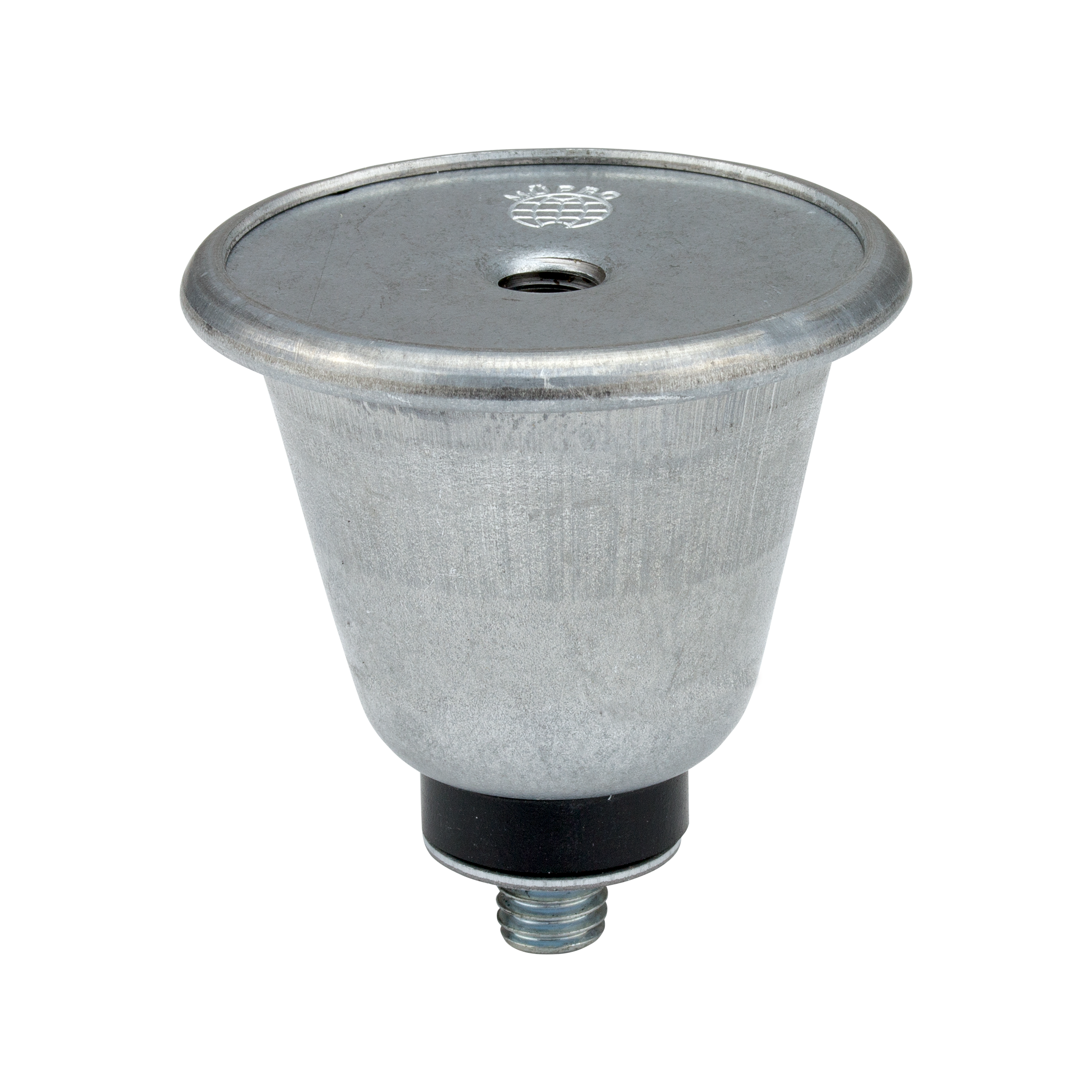

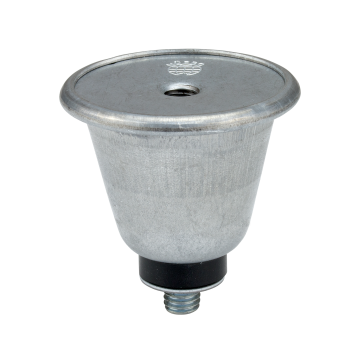

Vibration control element, M8

Art.no.: 117722
Sales unit: 50 Pieces
Weight/item: 0.114 kg
Pieces

Field of application

  • Versatile use, e.g. for the fixing of pipelines, air ducts and equipment
  • For the vibration-damped suspension of sound absorbing ceilings
  • Suitable for ceiling, wall or floor mounting

Advantages

  • High noise reduction of up to 26 dB(A)
  • With self-extinguishing, decoupling washer
  • Does not tear out in case of fire due to steel casing
Basic data text
Vibration control element, M8
Material
metal, DÄMMGULAST®
Surface
galvanised
Connecting thread
M8
Max. recommended compression load axial
300 N
eCl@ss 11.1
23-18-90-90
Max. recommended tensile load axial
600 N
eCl@ss 7.1
25-02-04-12
Max. recommended compression load radial
200 N
Vibration control tested
Yes
Average vibration reduction
26 dB(A)
Customs tariff number
73269060
Weitere technische Details finden Sie im Datenblatt.
