Slide guides 2.3 kN

Slide guides 2.3 kN

galvanised

Display variants as list

Connecting thread:

M8/M10 M12

Surface:

galvanised

Field of application

  • Attachment of pipes with thermal, axial expansion
  • A variety of installation possibilities (floor-mount, ceiling-mount, wallmount)

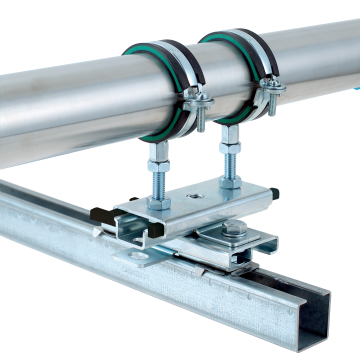

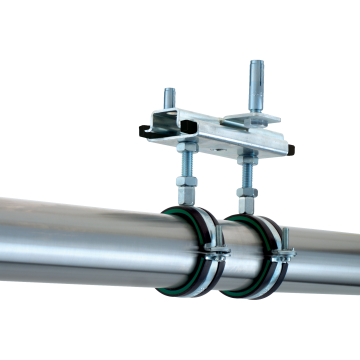

  • Suitable for pipes mounted from above and from below
  • Expansion assembly attachment as cross connection for pipe movement in axial and lateral directions

Advantages

  • Flat, compact design for secure mounting in cramped mounting situations
  • Large slide travel of up to 76 mm
  • High-level application flexibility due to triple connection facilities for pipe clamps

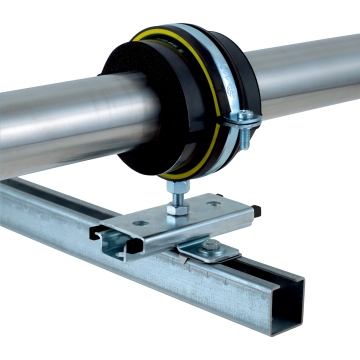

  • One or two pipe clamps can be mounted depending on the application
  • Fire-proof design for application in escape routes and emergency routes
Product type:
Expansion points
