Slide guides 2.3 kN M12 | galvanised

Slide guides 2.3 kN

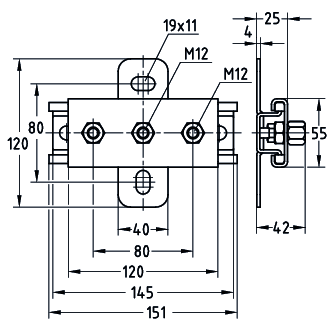

Slide guide 2.3 kN, connecting thread M12, galvanised

Display variants as list

Connecting thread:

M8/M10 M12

Surface:

galvanised
Reset selection
Art.no.: 139199
Connecting thread: M12
Surface: galvanised
Sales unit: 1 Pieces
Weight/item: 0.600 kg
Pieces

Field of application

  • Attachment of pipes with thermal, axial expansion
  • A variety of installation possibilities (floor-mount, ceiling-mount, wallmount)
  • Suitable for pipes mounted from above and from below
  • Expansion assembly attachment as cross connection for pipe movement in axial and lateral directions

Advantages

  • Flat, compact design for secure mounting in cramped mounting situations
  • Large slide travel of up to 76 mm
  • High-level application flexibility due to triple connection facilities for pipe clamps
  • One or two pipe clamps can be mounted depending on the application
  • Fire-proof design for application in escape routes and emergency routes
Basic data text
Slide guide 2.3 kN, connecting thread M12, galvanised
Product type
Expansion points
Material
Steel
Surface
galvanised
Connecting thread
M12
eCl@ss 11.1
23-05-01-01
eCl@ss 7.1
23-30-16-04
Fire protection certified
Yes
Max. recommended load
2,300 N
Max. slide travel
76 mm
Temperature range
-40 °C to +100 °C
Customs tariff number
73269060
Further technical details can be found in the data sheet.
