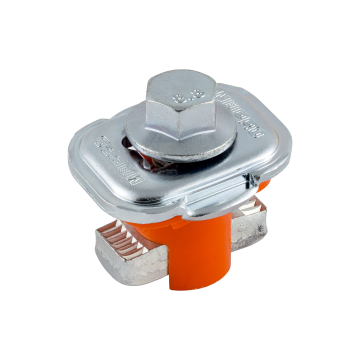

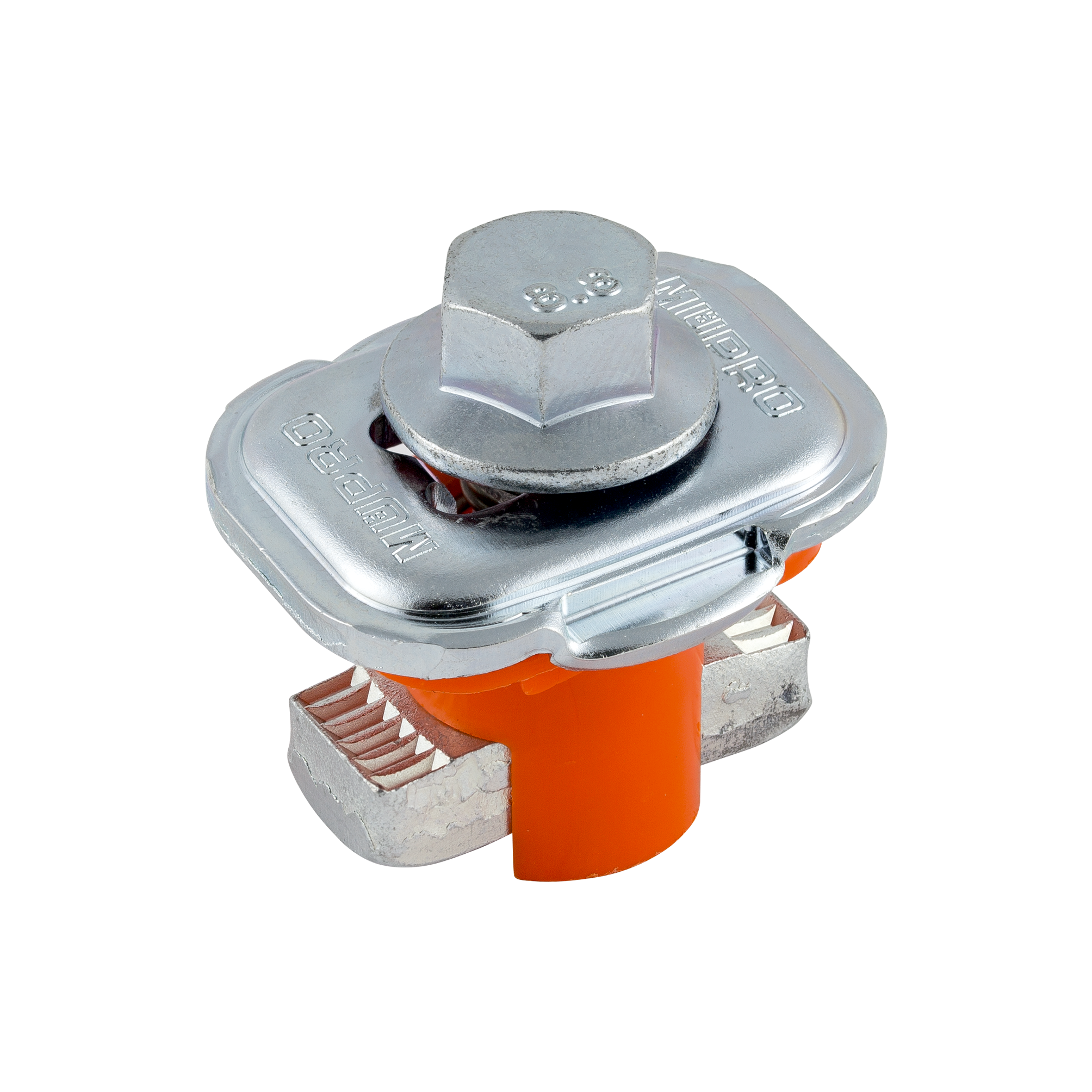

MPR-Connection lock type S+ galvanised

MPR-Connection lock type S+

MPR-Connection lock, type S+, for profiles 41/21-41/124, galvanised

Art.no.: 169020
Sales unit: 50 Pieces
Weight/item: 0.075 kg
Pieces

Field of application

  • For connecting type S+ mounting parts with MPR-Support channels
  • For indoor use

Advantages

  • Time-saving - fast and powerful frictional connection of type S+ mounting parts with MPR-Support channels
  • Easy - simply slot into the type S+ mounting part and tighten the connection lock by turning 90°
  • Secure interlocking design for a positive connection with the MPR-Support channels
  • No wrench or auxiliary tool needed to hold in place
  • No confusion - one size fits all type S+ mounting parts
Basic data text
MPR-Connection lock, type S+, for profiles 41/21-41/124, galvanised
Support channels
for MPR-Profiles
Product type
Quick-mounting system type S+
Thread
M10
For profiles
41/21-41/124
Material
Steel
Surface
galvanised
eCl@ss 7.1
23-15-92-90
eCl@ss 11.1
23-36-02-90
Fire protection certified
Yes
Spanner width
13 mm
Customs tariff number
73269060
Weitere technische Details finden Sie im Datenblatt.
