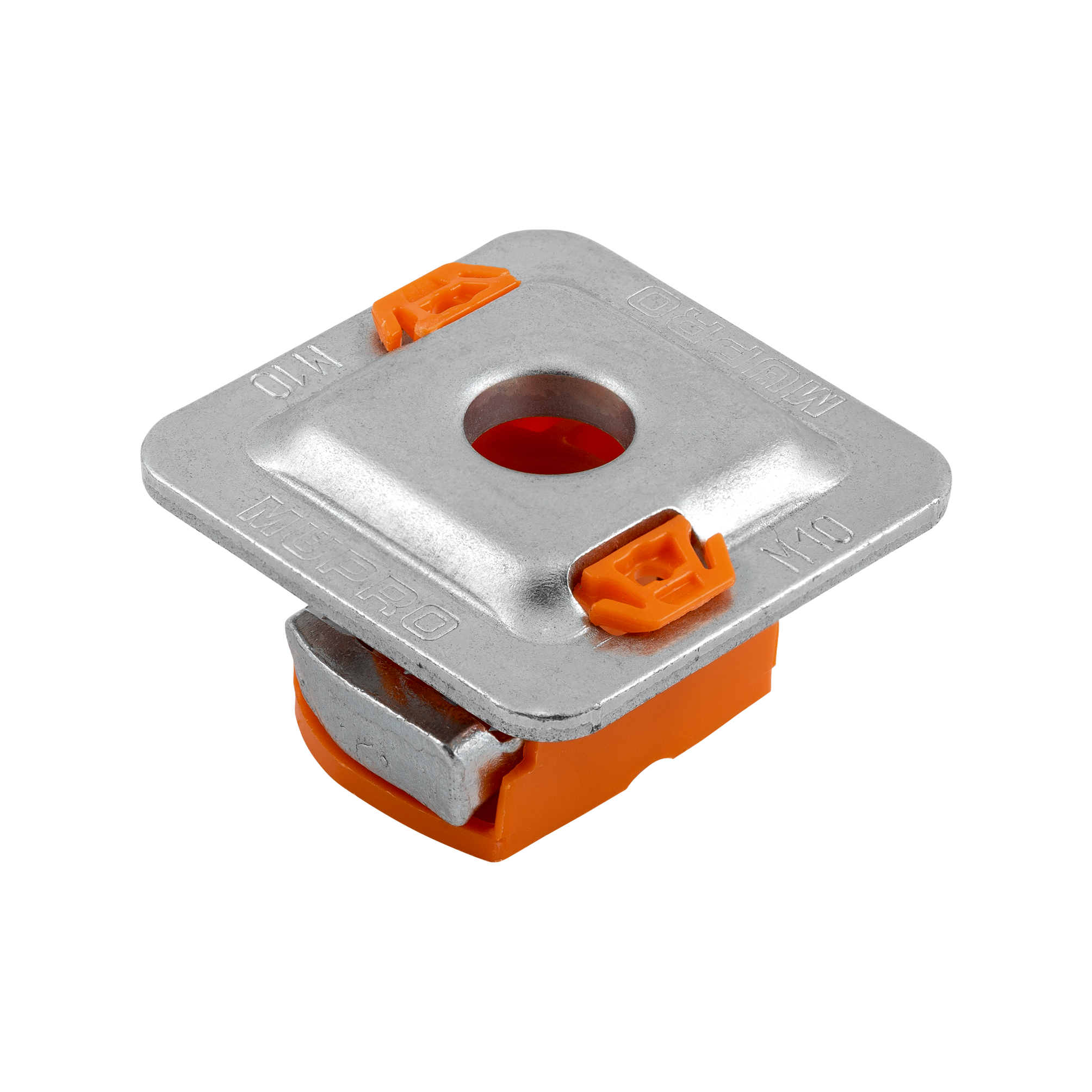

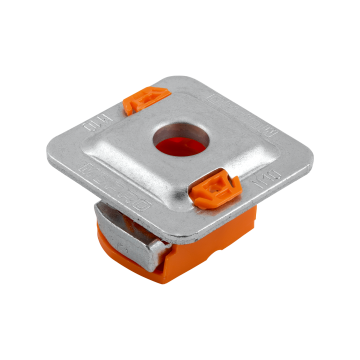

MPR-Quick fasteners type S+

MPR-Quick fasteners type S+

galvanised

Display variants as list

Connecting thread:

M8 M10 M12 M16 R½″

Surface:

galvanised

Field of application

For safe and fast connecting of pipe clamps and mounting parts in the rail slot of MPR-Support channels
For indoor use

Advantages

Simply screw into the rail slot - done
Safely retained after screwing in, alignable until screw is tightened
Secure interlocking design for a positive connection with the MPR-Support channels
No shifting even on vertical rail slots

Support channels:: for MPR-Profiles
Product type:: Quick-mounting system type S+
Material:: Steel
Surface:: galvanised
eCl@ss 7.1:: 23-15-92-90

MPR-Quick fasteners type S+, galvanised

	Product number	Connecting thread	Surface	Action
	165680	M8	galvanised	Pieces
	165679	M10	galvanised	Pieces
	165678	M12	galvanised	Pieces
	165677	M16	galvanised	Pieces
	165676	R½″	galvanised	Pieces
