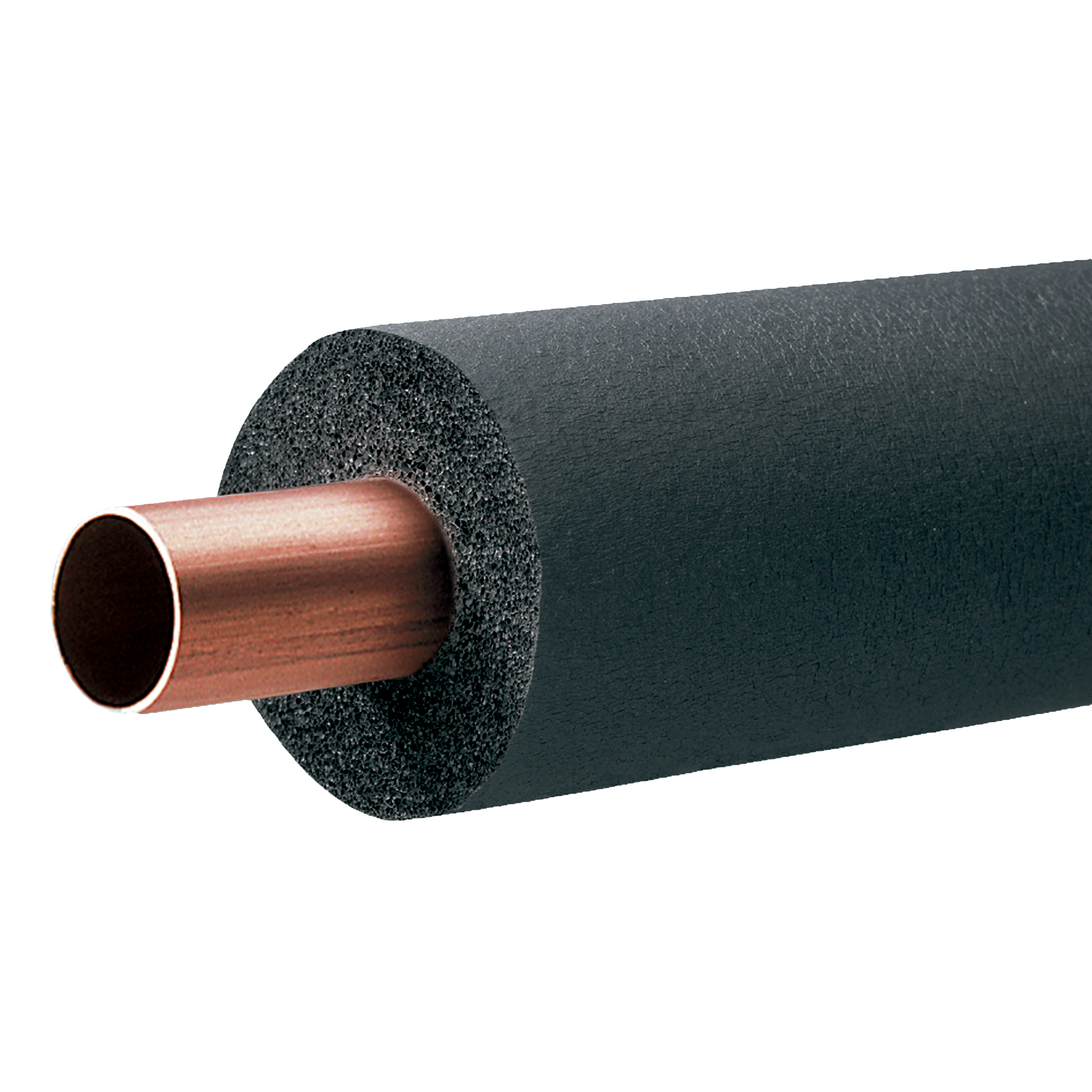

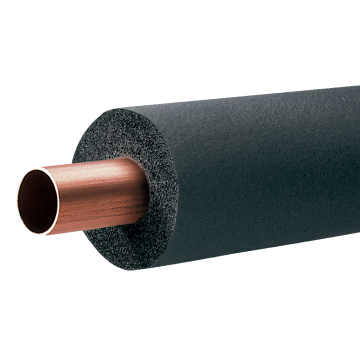

MypoTHERM® Caoutchouc Plus

Display variants as list

Insulation thickness:

Pipe outer diameter (copper pipe):

Pipe outer Ø (steel pipe):

Field of application

Advantages

Material possesses enormous flexibility and form stability
Easy to work because of its smooth inner surface, especially in pipe bends and heavily twisted pipes
Low thermal conductivity and high vapour diffusion resistance
Closed-cell structure prevents the absorption of condensate, oil and other aggressive fluids
Euro fire class BL-S3-d0, dioxin-free in the event of fire
Free of formaldehyde

MypoTHERM® Caoutchouc Plus

Product number	Insulation thickness	Pipe outer diameter (copper pipe)	Pipe outer Ø (steel pipe)	Action
137916	7 mm		44.5 mm	Carton
137917	7 mm		48.3 mm	Carton
137918	7 mm		54 mm	Carton
137919	7 mm		57 mm	Carton
137920	7 mm		60.3 mm	Carton
137921	7 mm		63.5 mm	Carton
137922	7 mm		70 mm	Carton
137923	7 mm		76.1 mm	Carton
136745	13 mm	6 mm		Pieces
137934	13 mm	8 mm		Carton
136764	13 mm	10 mm	10.2 mm	Pieces
137935	13 mm	12 mm	13.5 mm	Carton
137936	13 mm	15 mm		Carton
137937	13 mm	18 mm	17.2 mm	Carton
137938	13 mm	22 mm	21.3 mm	Carton
137939	13 mm	25 mm	25 mm	Carton
137940	13 mm	28 mm	26.9 mm	Carton
137941	13 mm	30 mm	30 mm	Carton
136773	13 mm	35 mm	33.7 mm	Carton
136746	13 mm	42 mm	42.4 mm	Carton
137942	13 mm		44.5 mm	Carton
137943	13 mm		48.3 mm	Carton
136699	13 mm		54 mm	Carton
137944	13 mm		57 mm	Carton
137945	13 mm		60.3 mm	Carton
137946	13 mm		63.5 mm	Carton
137948	13 mm		70 mm	Carton
137950	13 mm		76.1 mm	Carton
137992	19 mm	10 mm	10.2 mm	Carton
136747	19 mm	12 mm		Pieces
137993	19 mm	15 mm	13.5 mm	Carton
137994	19 mm	18 mm	17.2 mm	Carton
137995	19 mm	22 mm	21.3 mm	Carton
137996	19 mm	25 mm	25 mm	Carton
137998	19 mm	28 mm	26.9 mm	Carton
138000	19 mm	30 mm	30 mm	Carton
136936	19 mm	35 mm	33.7 mm	Pieces
138001	19 mm	42 mm	42.4 mm	Carton
138002	19 mm		44.5 mm	Carton
138003	19 mm		48.3 mm	Carton
138004	19 mm		54 mm	Carton
138005	19 mm		57 mm	Carton
138006	19 mm		60.3 mm	Carton
138007	19 mm		63.5 mm	Carton
138008	19 mm		70 mm	Carton
138009	19 mm		76.1 mm	Carton
138065	32 mm	18 mm	17.2 mm	Carton
138066	32 mm	22 mm	21.3 mm	Carton
138067	32 mm	28 mm	26.9 mm	Carton
138070	32 mm	35 mm	33.7 mm	Carton
136775	32 mm	42 mm	42.4 mm	Carton
138073	32 mm		48.3 mm	Carton
138075	32 mm		60.3 mm	Carton
138078	32 mm		70 mm	Carton
138079	32 mm		76.1 mm	Carton
