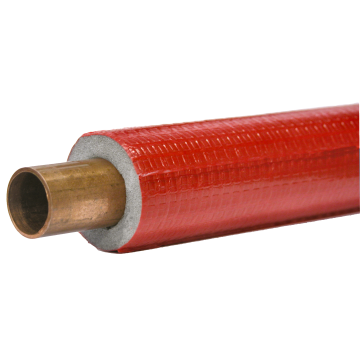

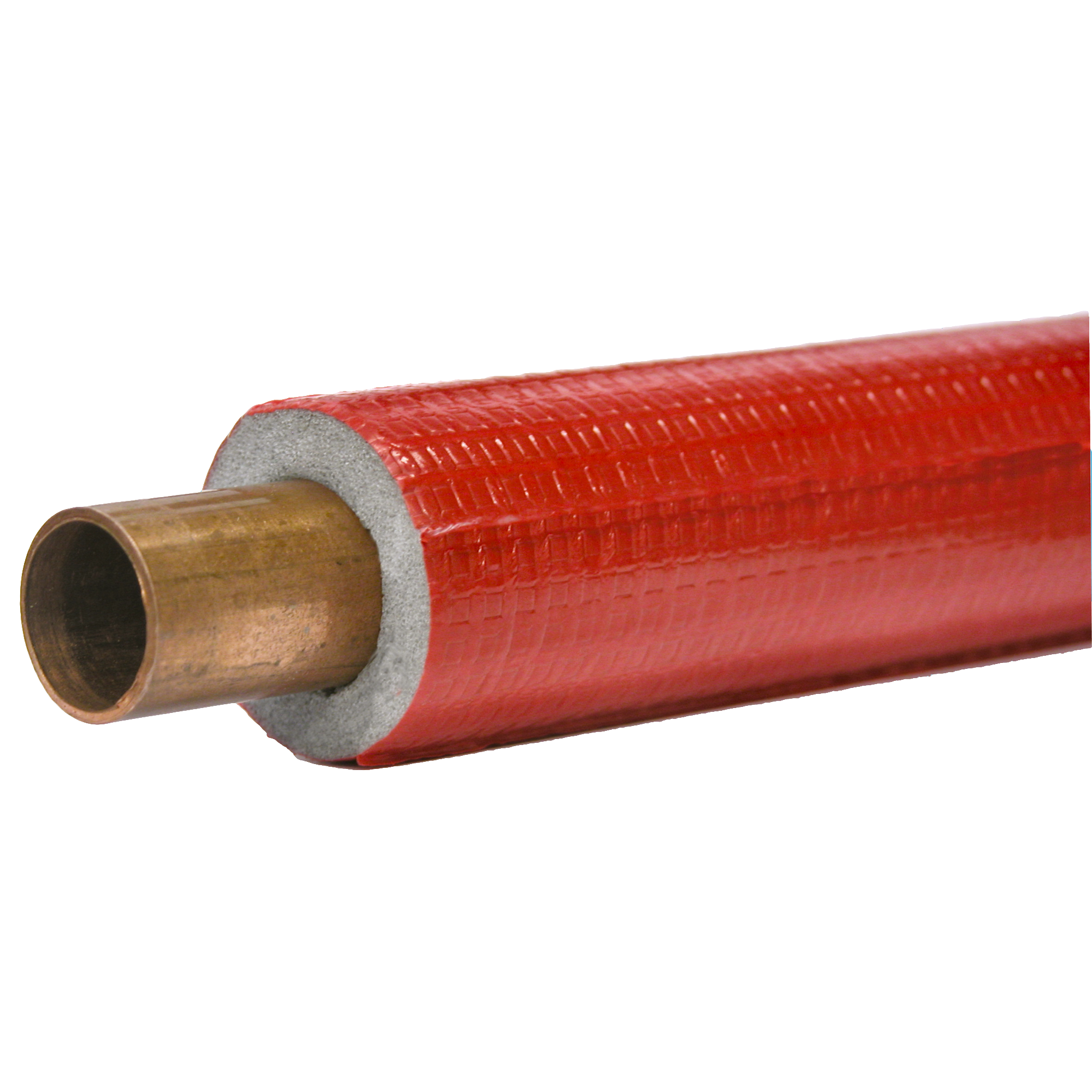

MypoTHERM® Insulation tubes

with red protecting film

Display variants as list

For pipe outer Ø:

Insulation thickness:

4 mm 9 mm 13 mm 20 mm 25 mm

Field of application

Thermal insulation of hot water supply pipes with high demands on the mechanical strength of the insulation
For copper, steel and boiler pipes as well as for pipes made of plastic, composite materials and stainless steel

Advantages

Protects heating pipes and hot water pipes against heat losses
Insulation thicknesses meet the requirements of the Building Energy Act (GEG) for the protection of cold pipes according to DIN 1988-200
Closed-cell polyethylene made of at least 50 % renewable materials (thereby low environmental impact)
Retains its shape even when cut open
Easily to cut and handle
Reduces noise levels
Red polyethylene vapour barrier
Protects the pipes against mechanical damage, condensation and corrosion
Insulation does not contain PVC
Non-ageing, non-putrescible, tear-resistant and crush-resistant

Product number	For pipe outer Ø	Insulation thickness	Action
112237	15 mm	4 mm	Carton
112335	18 mm	4 mm	Carton
112386	22 mm	4 mm	Carton
112442	28 mm	4 mm	Carton
112482	35 mm	4 mm	Carton
112283	15 mm	9 mm	Carton
112337	18 mm	9 mm	Carton
112388	22 mm	9 mm	Carton
112444	28 mm	9 mm	Carton
112484	35 mm	9 mm	Carton
112514	42 mm	9 mm	Carton
112277	15 mm	13 mm	Carton
112331	18 mm	13 mm	Carton
112382	22 mm	13 mm	Carton
112436	28 mm FE	13 mm	Carton
112476	35 mm	13 mm	Carton
112506	42 mm	13 mm	Carton
112438	28 mm CU	20 mm	Carton
112478	35 mm	20 mm	Carton
112510	42 mm FE	20 mm	Carton
112279	15 mm	25 mm	Carton
112333	18 mm	25 mm	Carton
112384	22 mm	25 mm	Carton
112440	28 mm FE	25 mm	Carton
112480	35 mm	25 mm	Carton
112512	42 mm CU	25 mm	Carton
