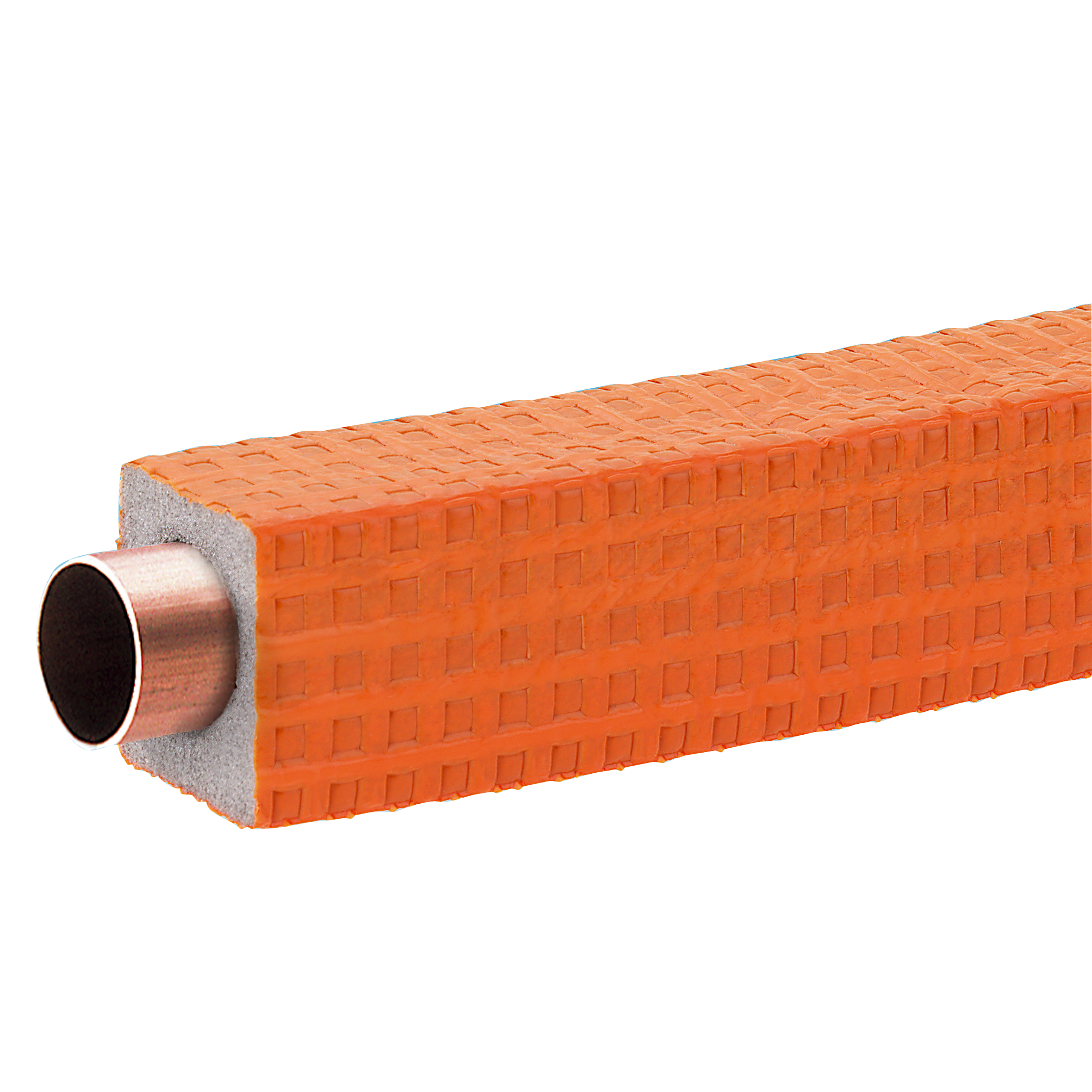

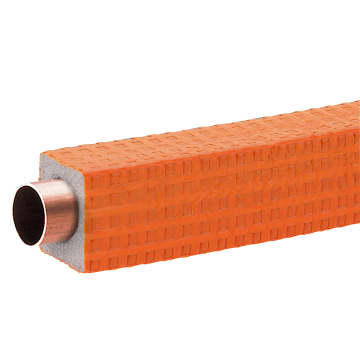

MypoTHERM® Kompakt floor tubes

MypoTHERM® Kompakt floor tubes

Display variants as list

Iso-type:

15-9 15-25 18-9 18-25 22-9 22-25 28-9 28-25 35-9 42-46

Insulation thickness:

9 mm 25 mm 46 mm

Select a variant for further information, images and documents.

Field of application

For insulation of pipe work for flooring constructions, e.g. screed

Advantages

Space-saving overall height
Rectangular pipe insulation made of polyethylene made of at least 50 % renewable materials (thereby low environmental impact)
Meets GEG and DIN requirements
Floor/wall insulation with protecting film as vapour barrier
High damping of structure borne noise
High vapour diffusion resistance

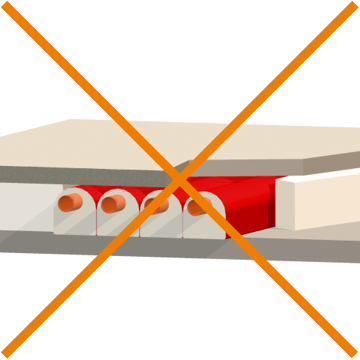

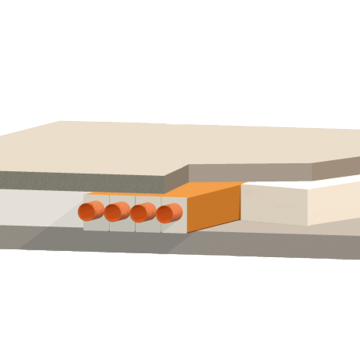

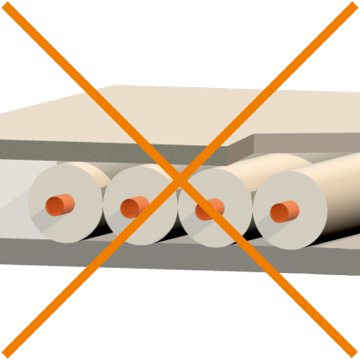

Rectangular construction to avoid needless spaces within the screed
Dioxin-free in case of fire
Non-ageing and non-putrescible

Insulation: Thermal insulation
CE: Yes

Further technical details can be found in the data sheet.

MypoTHERM® Kompakt floor tubes

	Product number	Iso-type	Insulation thickness	Action
	140319	15-9	9 mm	Carton
	140320	18-9	9 mm	Carton
	140321	22-9	9 mm	Carton
	140322	28-9	9 mm	Carton
	140323	35-9	9 mm	Carton
	140324	15-25	25 mm	Carton
	140325	18-25	25 mm	Carton
	140326	22-25	25 mm	Carton
	140327	28-25	25 mm	Carton
	170835	42-46	46 mm	Carton
