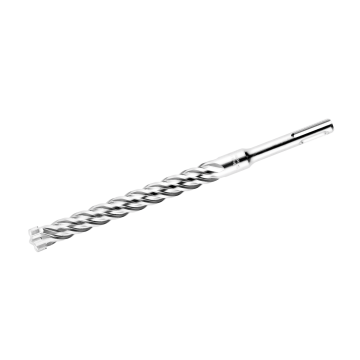

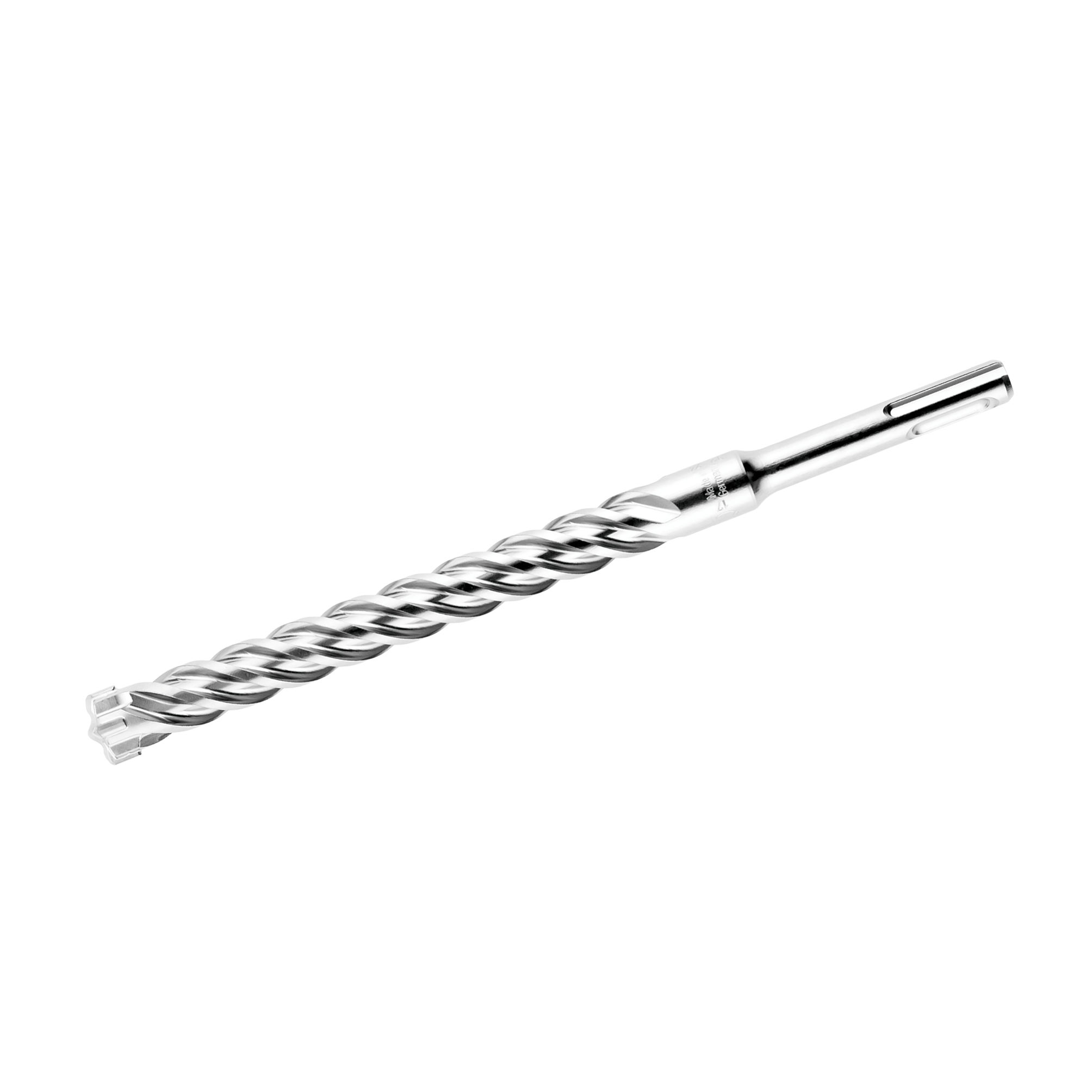

Hammer drills SDS-plus

with 4-blade technology

Display variants as list

Diameter:

6 mm 8 mm 10 mm 12 mm 18 mm

Total length:

110 mm 160 mm 210 mm 250 mm

Content:

1 pieces 10 pieces/box

Field of application

Advantages

Made of high-quality heattreated steel specially selected for the toughest applications
4-spiral drill body geometry for smooth running and optimal guidance in the drill hole
5 crushers use impact and torsion to create precise drill holes in concrete and reinforcement

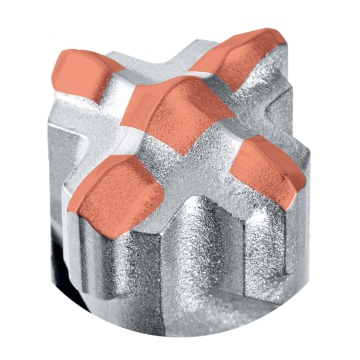

Carbide plate with radially shaped reinforcement protection prevents hooking when hitting reinforcement
The highlighted centering tip ensures that the drill can be used for a long time, even in extreme applications
Wear marks show whether the tool is still suitable for drilling holes suitable for dowels
Low vibration to protect people and machines
Very long service life thanks to evenly distributed wear

Product number	Diameter	Total length	Content	Action
178719	6 mm	110 mm	1 pieces	Pieces
178720	6 mm	160 mm	1 pieces	Pieces
178721	6 mm	210 mm	1 pieces	Pieces
178723	8 mm	160 mm	1 pieces	Pieces
178725	10 mm	160 mm	1 pieces	Pieces
178726	10 mm	210 mm	1 pieces	Pieces
178728	12 mm	160 mm	1 pieces	Pieces
178738	18 mm	250 mm	1 pieces	Pieces
178743	6 mm	160 mm	10 pieces/box	Pieces
178747	10 mm	160 mm	10 pieces/box	Pieces
